Optimized Lab Scale Fermentor,
Mastering Microbial Cultures with
Controlled Batch Fermentation

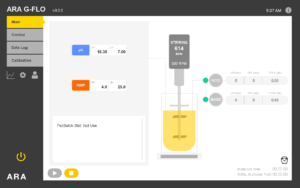

| Main Controller | 12" (30.48 cm) Tablet PC | |
| Vessel type & Volume | Single Flat 3L | |
| Agitation | Drive | DC Motor (60 W) |
| Display | Digital Display (1 RPM, interval) | |
| Range | 100~1,200 RPM | |
| Temperature | Display | Digital display, Graph (0.1°C, interval) |
| Range | Ambient ~ 50°C (8°C with Optional Circulator) | |
| Sensor | PT100 | |
| pH | Display | Digital display (0.01 pH, interval) |
| Range | pH0~ pH14 | |
| Sensor | EasyFerm Plus PHI K8 | |
| Peristaltic Pump | Two Pumps Installed, 1 ~ 400 RPM | |
| Impeller Type | Basic : Rushton Turbine (Optional : Pitched-paddle / Marine-blade / Varied Impeller) | |
| Ratings | 220-230 V~, 50/60 Hz, Single phase, 110V, 50Hz (Optional) | |
| Power Requirement | 850 VA | |
| Dimension (W x D x H, mm) | 350 x 200 x 450 | |
| Controller weight (kg) | 13 | |
